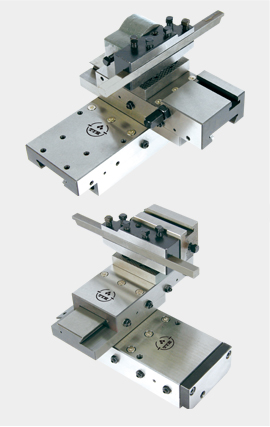

The No. 1 and 5 Tool post will as a parallel and slope process to obtain micro adjustment at meantime with an available and convenience for operator works.
二、三、四號刀具組【Tool No.2.3.4】
二、三、四號刀具滑台可以作垂直運動與微調功能
The Tool No. 2, 3, 4 of sliding table with an available and convenience for vertical motion and micro adjustment also.
Spindle Manufactured from case hardened steel by passing through forging and specifically hardened and ground to maintain 5 micron accuracy. Adapted from Japan's NSK bearings and all the threads are grounded in the spindle assembly. The main spindle body has three of gripper of clamp & unclamp set, with able to enhance up rotation smooth with a wide of arrange speeds is adjustable that with a higher rigidty and accuracy, more easily to maintain and change.
銑牙座裝置，可取代5號切斷刀，作銑外牙加工，提高生產效率。
The Thread milling seat device could be as a milling outside thread device instead No.5 tool function and with high- efficiency and high-accuracy.
*All designs and specifications subject to change without notice.
